H145

Technical information

As the quietest helicopter in its class, the twin-engine H145 offers exceptional performance along with upgraded main and tail rotor systems. This guarantees an unprecedented level of performance in both hover and one-engine inoperative conditions.

Technical Description

Performance

Hover ceiling OGE	2,729 m
Hover ceiling IGE	3,807 m
Recommended cruise speed	241 km/h
Max* range with standard fuel tanks at SL	650 km
Max* endurance with standard fuel tanks SL	3 h 35 min
Flight envelope (temperature)	-45°C +50°C
Max altitude for TO and landing	6,096 m
Sound level during level flight	85.7 dB (preliminary data - confidence interval of +/- 0.5 dB)

Dimensions

D-value

13.54 m

Rotor diameter

10.8 m

Internal volume (cabin and cargo compartment)

6.03 m3

Characteristics

Crew + passengers	1 or 2 pilots and up to 10 passengers
Max takeoff weight (MTOW)	3,800 kg
Max takeoff weight with external load	3,800 kg
Useful load	1,905 kg
Engine	2 x Safran Helicopter Engines Arriel 2E
Standard fuel tank capacity	723 kg
Takeoff power	667 kW / 894 shp
Empty weight, Baseline Aircraft Definitions	1,895 kg
Maximum dual cargo hook load (single hook operation)	1,600
Maximum dual cargo hook load (HEC class D operation)	800

Performance

Hover ceiling OGE	8,955 ft
Hover ceiling IGE	12,490 ft
Recommended cruise speed	130 kts
Max* range with standard fuel tanks at SL	351 nm
Max* endurance with standard fuel tanks SL	3 h 35 min
Flight envelope (temperature)	-40°C +50°C
Max altitude for TO and landing	20,000 ft
Sound level during level flight	85.7 dB

Dimensions

D-value	44.42 ft
Rotor diameter	35.43 ft
Internal volume (cabin and cargo compartment)	213.16 cu. ft

Characteristics

Crew + passengers	1 or 2 pilot and up to 10 passengers
Max takeoff weight (MTOW)	8,378 lb
Max takeoff weight with external load	8,378 lb
Useful load	4,200 lb
Engine	2 x Safran Helicopter Engines Arriel 2E
Standard fuel tank capacity	1,593.9 lb
Takeoff power	667 kW / 894 shp
Empty weight, Baseline Aircraft Definitions	4,178 lb
Maximum dual cargo hook load (single hook operation)	3,527
Maximum dual cargo hook load (HEC class D operation)	1,764

Configurations

Eight seats for passenger transport

The configuration with one or two pilots and eight passengers is perfect for transport or offshore airlift operations. The H145’s large cabin accommodates an additional 1.31m3 of cargo, while its smooth ride provides for a relaxing journey.

10 passengers

The H145’s high-density layout accommodates one or two pilots and ten passengers. Ideal for more-travelled routes, the spacious cabin gives an impression of comfort even when fully occupied.

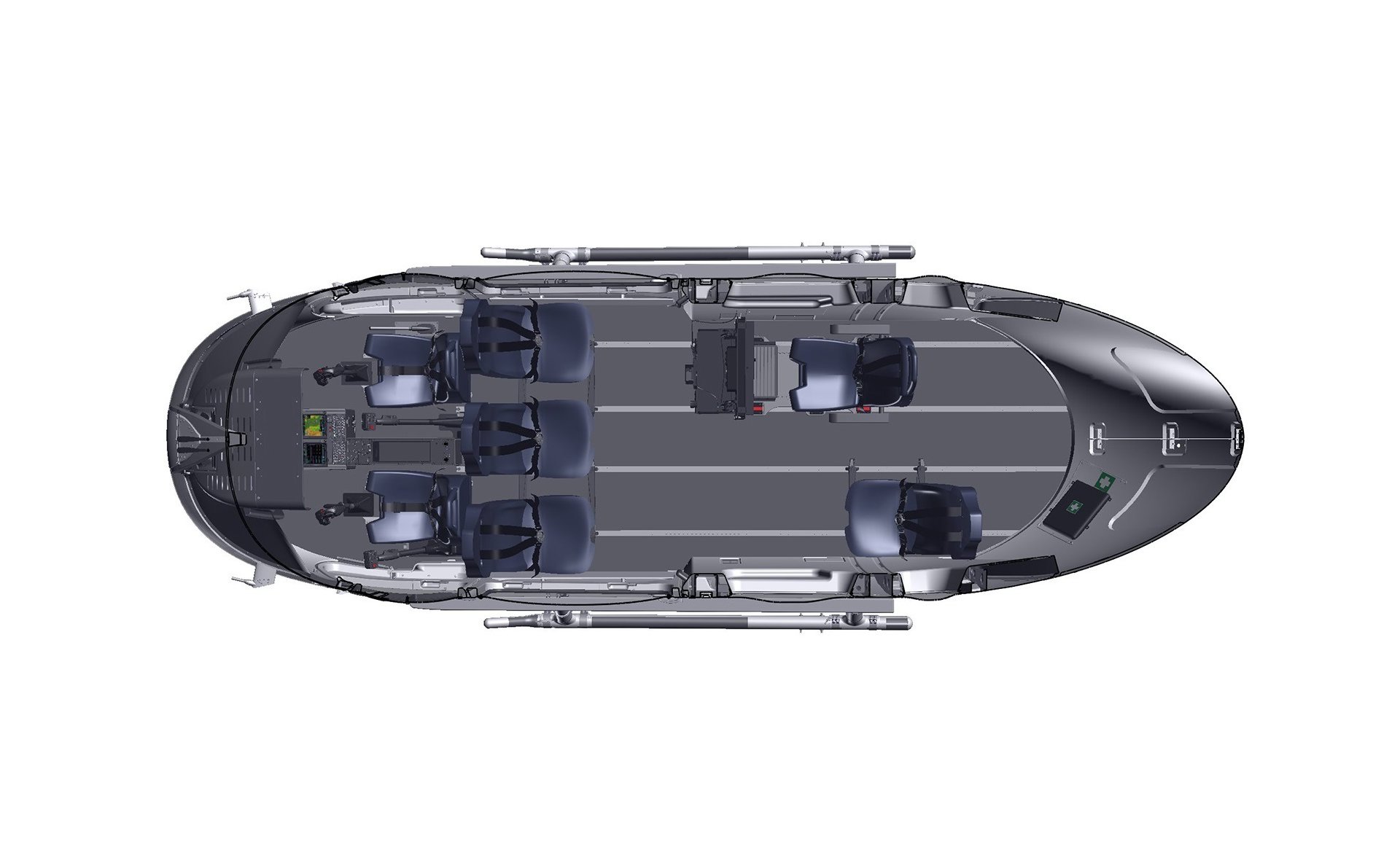

Law enforcement

Airbus’ H145 offers multiple seating arrangements for law enforcement operations – including a two-pilot configuration with an operator workstation installed in the rear position and space for four passengers, along with versions tailored for transporting up to five police officers (plus console operator), nine SWAT team members or 10 troops.

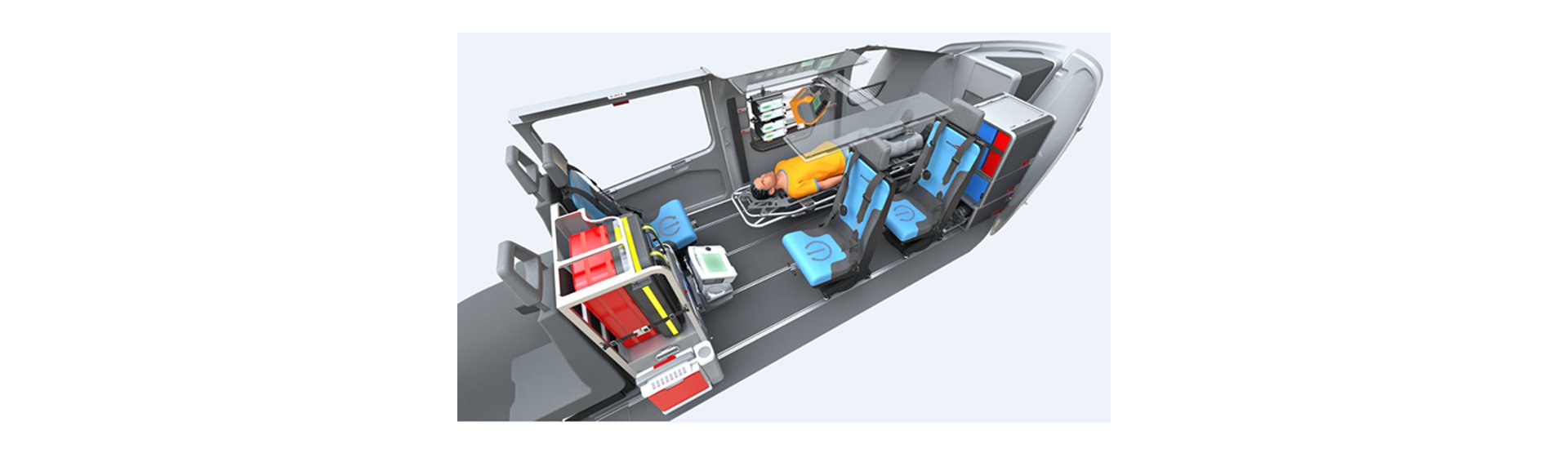

Emergency medical services

The layout with one or two pilots and up to two stretchers includes room for up to three HEMS crew members for emergency medical services missions. Efficient loading of stretchers through side sliding doors or rear clamshell doors facilitate patient comfort and safety.

Documents

Download All

Infographics

High Resolution

Low Resolution

High Resolution

Low Resolution

Download All

Did you know?

Total H145 family helicopters delivered (all versions including BK117)	over 1,695
Total in service helicopters	close to 1,500
Total cumulated flight hours (all versions including BK117)	6.1 million
Customers (all versions including BK117)	some 295 customers in 62 countries
H145 family helicopters flying for EMS missions	around 460
